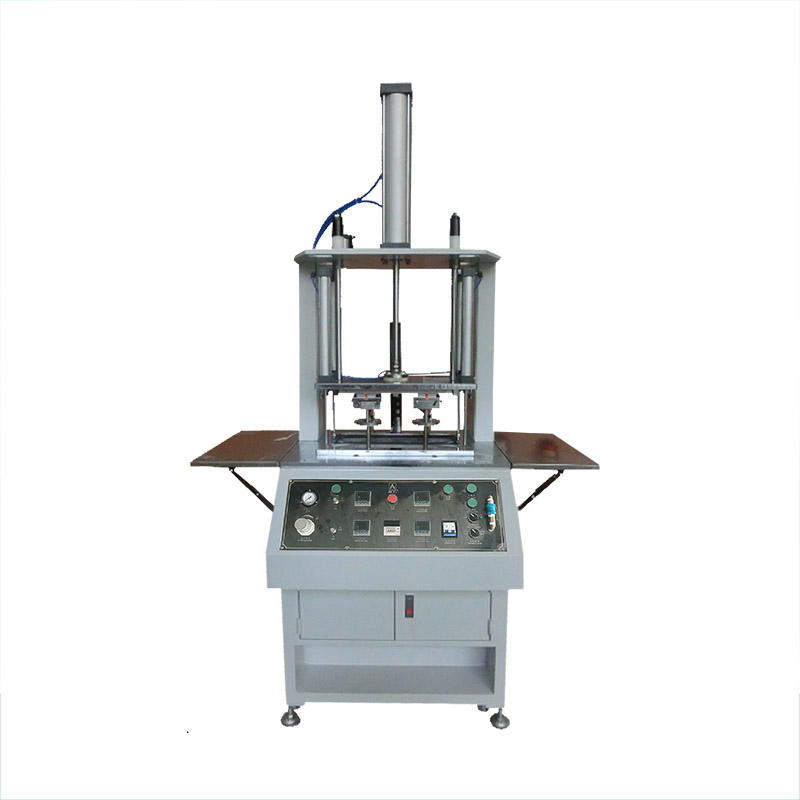

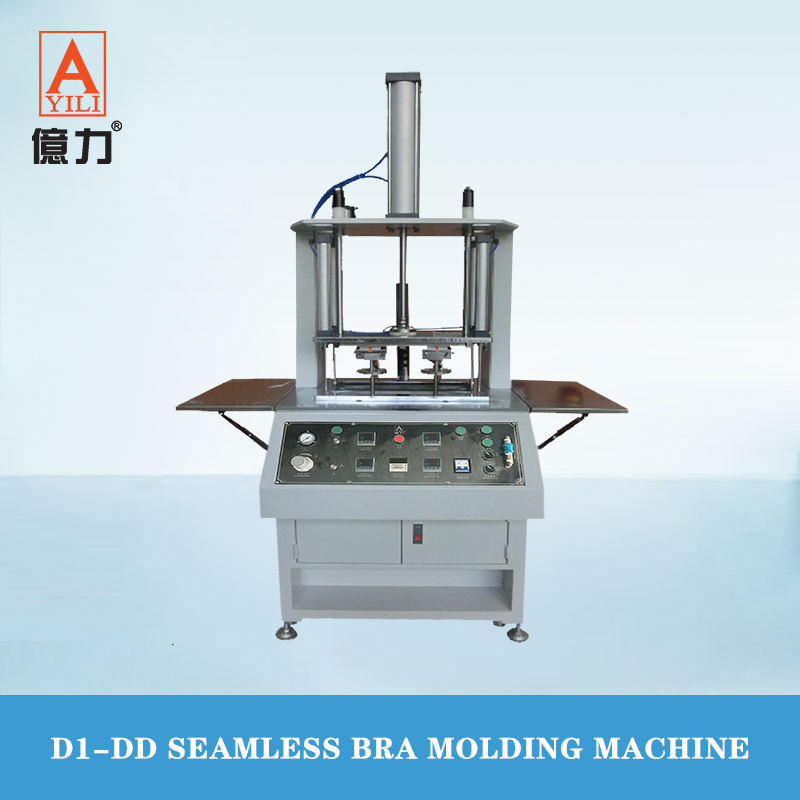

D1-DD fabric bra cup molding machine

Main feature:

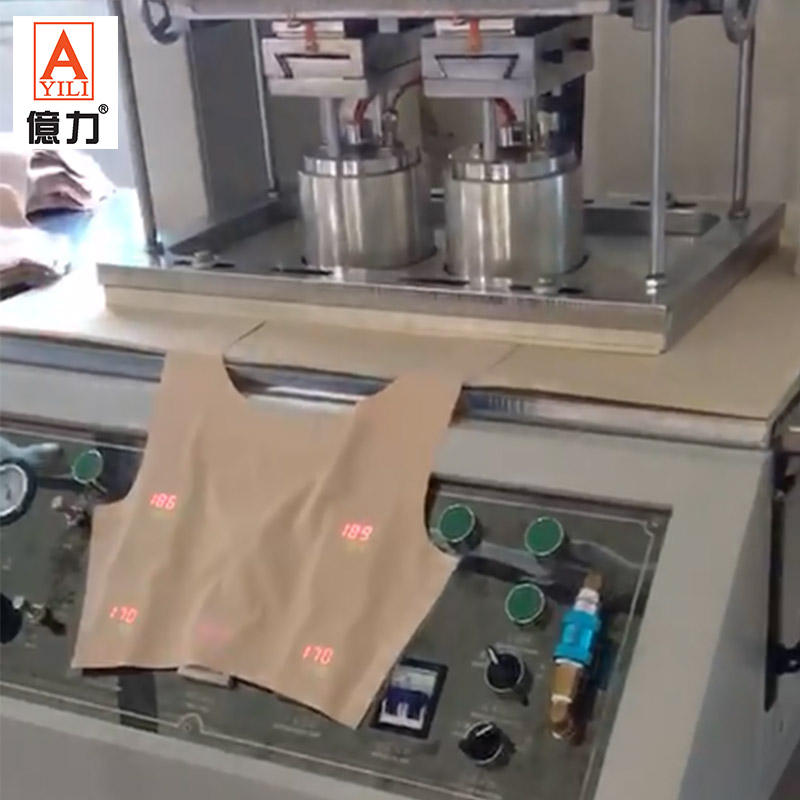

For molding outer fabric cups for foam pads or similar products. With the help of clamping frames&plates, fabric is held before the molds come together, resulting in good quality and material saving.

Features:

1. This machine uses standardized bullets and interchangeable clamping rings, shorten the bullet change-over time and increase productivity;

2. This machine uses special designed, variouble pressure cylinders to clamp the fabrics, not only it gives even clamping forces, but also can keep the clamping pressure constant. This will allow fabrics of different thickness and elongation to be molded on this machine;

3. Hand-wheel and depth gauge is installed on this machine;

4. PLC is used to control the safety operation of the machine, features including: two-hand safey control, low/high temperature warning, power-outage safety lock; this machine is designed to complie with European/American safety standard, and reinforce and safety of the operators and the factory;

5. High quality digital temperature controllers are used to control the temperature of the molds, resulting in fast reaction and high accuracy. Thermo-insulation material is used to maintain the heat in the lower heater, making this machine consuming less eletricity and environmental friendly.

Technial Parameter:

-------------------------------------------------------------------------------------------------------------------------

Power:   AC220V/4.4KW

Compressed air:   0.4-0.8Mpa

Molding time:   0-999s

Bullet diameter:   Ø 70mm~175mm, Ø 70mm~220mm

External dimensions:  760mm × 760mm × 2200mm

Weight:  310 kg

-------------------------------------------------------------------------------------------------
